Juno ALG3R612L Trac-Lite 90 CRI 30K DBL J6 A-Light 280KJ6 Black

PRODUCT DESCRIPTION

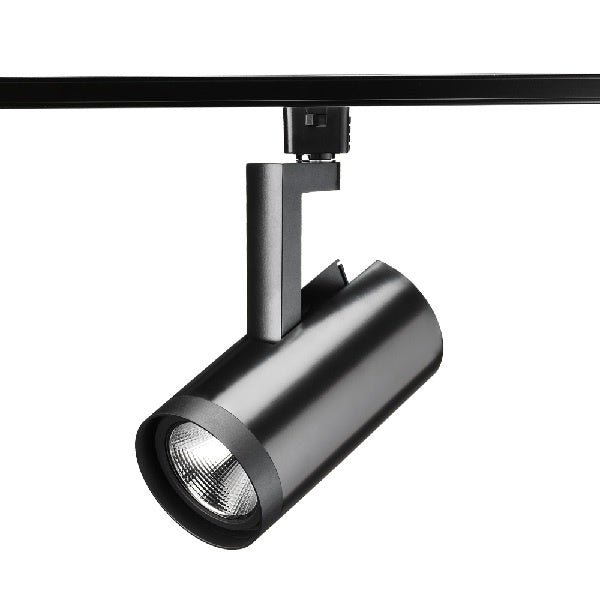

The R612L Series 37W LED Cylinder is an efficient and affordable trac fixture, with a simple and timeless cylindrical aesthetic. It can deliver up to 3339 lumens, at efficacies up to 90LPW and having a rated life of 50,000 hours. Its unique, nested yoke arm enables simple, straight-down aiming if desired. Precision bayonetmount reflectors enable uniform spot, narrow flood, flood or wide flood distributions to be achieved. These fixtures can also be fitted with a factory-assembled or field-installed accessory holder that accommodates one accessory if desired. The 37W LED Cylinder can be specified with a variety of factory-assembled track mounting adapters, making it compatible with all line voltage Juno Trac systems and system components, or with many competitive 120V track systems.

PRODUCT SPECIFICATIONS
Construction

• Die cast aluminum housing provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50,000 hours of operation
• Simple, timeless design complements any decor
• Available in white, black and silver finishes.

LED

• High performance LED array provides outstanding reliability, performance and color quality/consistency
• 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
• Chromaticity range within a 3-step MacAdam Ellipse
• Exceptional 80 CRI minimum on standard product
• Optional high CRI versions offer 90 CRI minimum.

Driver

• Integrated into fixture housing behind LED light engine to minimize overall fixture footprint
• Insulating air gap between driver and LED light engine, plus thermal potting compound, optimizes thermal operation
• Provides quiet operation with or without dimming
• 120V fixtures are dimmable using high quality, factory-approved dimmers - see R612L-DIM
• Solid state electronic, Class 2 compliant
• Integral overcurrent and short circuit protection
• Designed for greater than 50,000 hour operating life
• FCC Certified to Part 15 Class B EMI standards (Class A at 277V).

Reflector

• Precision designed reflectors provide uniform spot, narrow flood, flood or wide flood beam distributions
• Faceted/dimpled reflector ensures a properly color-mixed beam
• Accessory reflectors available to convert from one beam distribution to another in the field.

Accessory Holder

• Optional accessory holder replaces front bezel without tools
• May be specified as a factory-installed option or ordered separately as a field-installed accessory
• Precision bayonet mounting
• Accommodates one accessory if desired.

Juno Universal Trac Adapter

• Universally compatible with both Trac-Master 1-circuit or 2-circuit trac, Trac-Lites trac, monopoints and special mountings
• Also UL Recognized for use on ConTech LT Series track
• Copper alloy contacts provide precise spring action - no arcing and will not take a set
• True, positive electrical ground
• On/off switch included
• Patented embossed polarity arrows on bottom of adapter
• Springloaded positive latch with embossed polarity arrows secures trac light to trac
• Two-position power contact provided for two-circuit application.

Aiming

• 360 degree horizontal coverage
• 95 degree vertical aiming capability.

Labels

• UL and C-UL Listed
• ENERGY STAR certified
• 80CRI versions are DesignLights Consortium Qualified
• 90 CRI versions certified as CEC
• Title 24 Compliant
• Union made
• Assembled in U.S.A.
